ROR / Fixed Temperature Heat Detector

EA323 series heat detectors provide an effective solution and fast response in case of intense fires under rapid temperature rise situation. The EA323 series heat detector operates by using a matched pair of thermistors to sense heat.

The EA323 range is classified according to EN 54-5 as Rate-of-Rise and Fixed temperature detectors. Fixed temperature thermistor will respond only when the alarm threshold is reached. Rate-of-Rise thermistor measures the rate of increase in temperature.

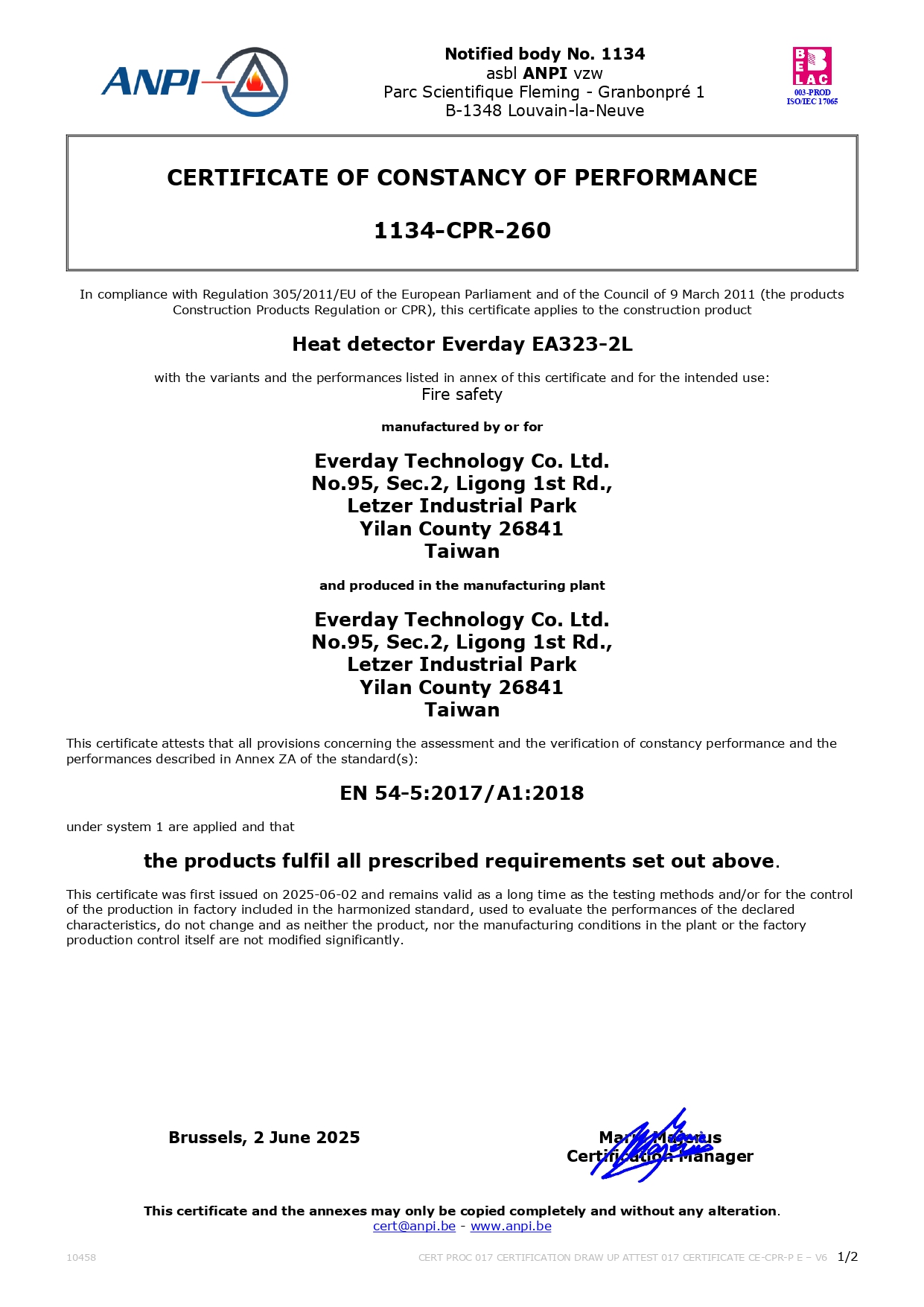

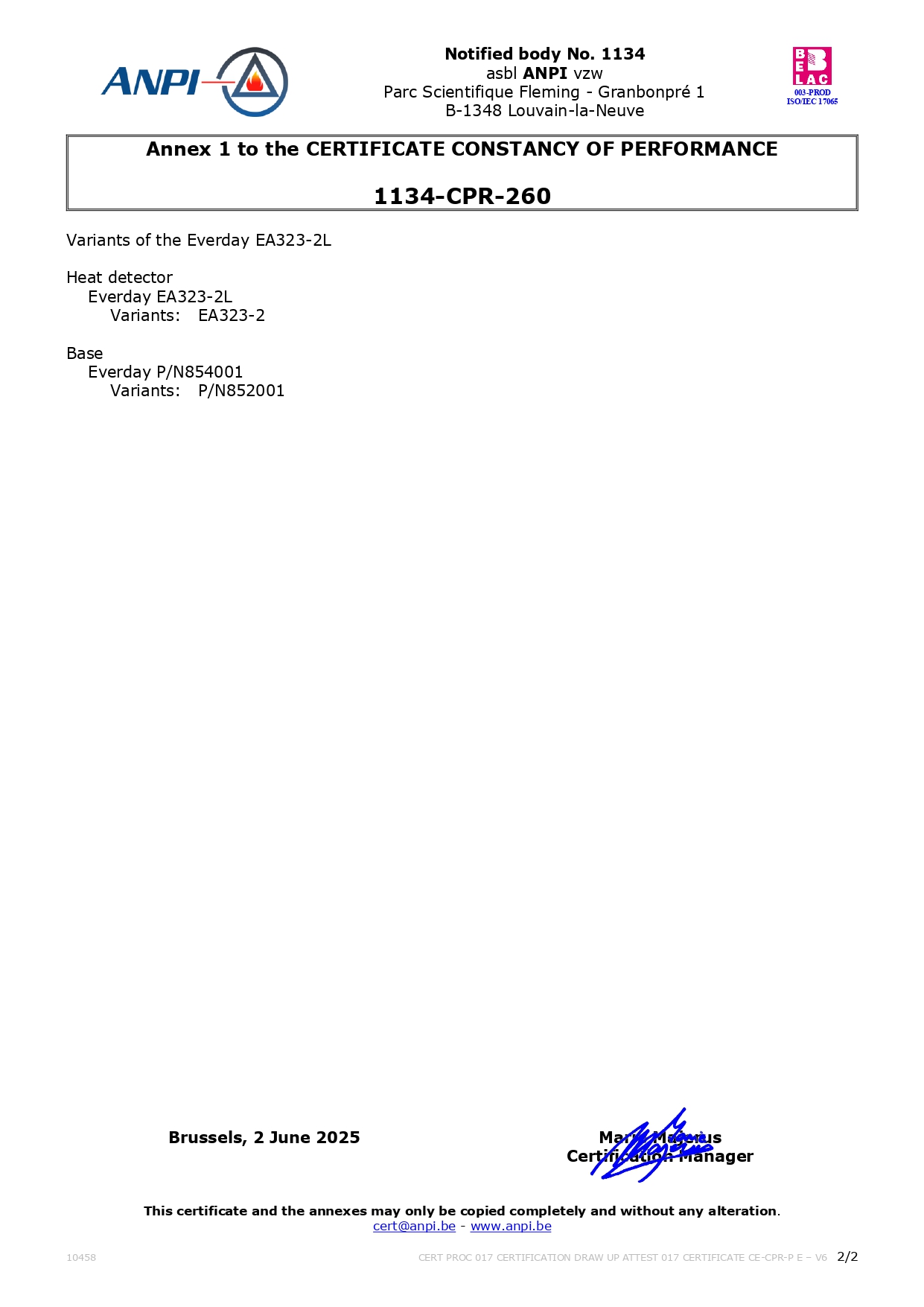

Approvals

EN 54-5:2000

The Range

EA-323-2	2 wire ROR / Fixed temperature Heat detector
EA-323-2L	2 wire ROR / Fixed temperature Heat detector with remote LED indicator output
EA-323-4	4 wire ROR / Fixed temperature Heat detector



Max rms. Ripple	25% of DC input
Rate-of-Rise	Class A2
Operating Temp.	+32°F~100°F (0°C to 38°C)



Features and Benefits

• Dual thermistors solution for accurate heat detection
• Common 2 and 4 wire base with EA318 series
• Dual LEDs for 360O visibility
• Magnet-activated sensitivity test switch
• Easy installation and maintenance

Specification

Model	2/4 wire	Heat Sensor Setting	Voltage DC	Start up Current (µA)	Standby Current(µA)	Alarm Current (Max)
EA-323-2	2	135°F(57°C)/A2R	12~35 V	170 µA	42 µA	60 mA@24 V
EA-323-2L	2	135°F(57°C)/A2R	12~35 V	170 µA	42 µA	60 mA@24 V
EA-323-4	4	135°F(57°C)/A2R	12 / 24 V	170 µA	42 µA	36mA@12 V,60mA@24 V
